Description

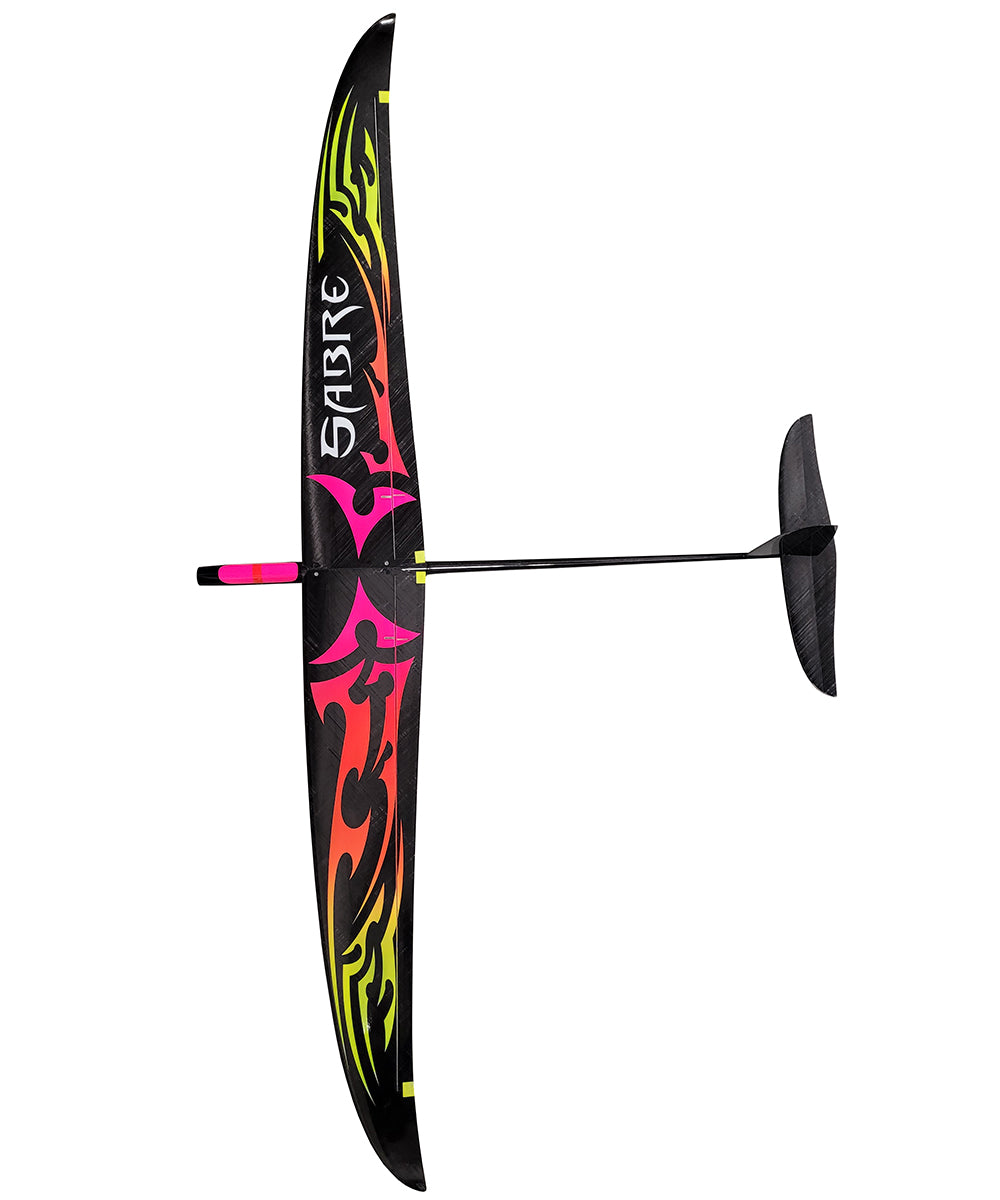

Sabre 1.5M F5K Light, Neon Orange/Yellow/Carbon (CW20 Wing)
The theory behind the Sabre wing was to have a wing that would not only perform well with low lift, but also penetrate well into the wind, achieving extremely low drag and thermal efficiency.
With the new release of the thin but powerful KST X06 which was released during the design phase, were able to get a thin enough wing with a direct drive servo for the flaperon. With only two servos in the fuselage to control the elevator and rudder direction this made it possible to create a thinner fuselage. Tail surfaces are driven by pull strings and springs.
Two-section wings which makes storage and transportation easier and convenient for shipping a smaller box around the world; This is achieved with a single wing connector and each wing panel is attached to the fuselage with 4 screws, which is simple and very efficient.
The Sabre is manufactured from the highest quality materials, the construction is fully carbon fiber using CW30,20,40,58 bi-axial carbon fabric wings and tail plane made of Rohacell hard core.
The model comes in a variety of options with aileron wires and a 3-pin connector already installed in each wing. The fuselage also comes with matching 3-pin connectors and connecting wires with pre-installed connectors for the JR servos. This is another difference between this model and its competitors in terms of quality and reduced assembly time.
The glider can be supplied in a variety of colors, using 30,20,40,58 g/m2 density CW carbon fabrics.
The fuselage has been designed to fit 25mm F5K spinners.
Kits includes:
- Extensive hardware pack
- Wing and Tail protective covers
- Pre-installed wiring and magnetic wing connectors
No ballast provisions installed
Specifications:
- Length: 882mm
- Wingspan: 1497 mm
- Wing area: 18 dm2
- Wing elongation: 12,45
- Impact area: 2.16 dm2
- Fin area: 1.4 dm2
- Average AUW (standard layup): 230g
Variants:
- Light CW20 wing- AUW 215-220g
- Standard CW30 wing- AUW 230-240g
- Hard CW40 wing- AUW 250-260g
Suggested Gear:
- Aileron servos- KST X06H
- Fuse servos- KST X06
- Motor- T-Motor F20, EMAX 1606 3300KV
- ESC- 15-20amp with BEC
- 25mm F5K Spinner
- 6x4,-7x4 F5K Prop set
- 2S 300-350mah battery
