Falcon F5J Altitude Device and data logger

RC-ElectronicsSKU: RCEFALCON

Price:
$ 124.99
Stock:
Sold out

Description

FAI approved device for F5J competitions with flight data recording

Click Here For Manual

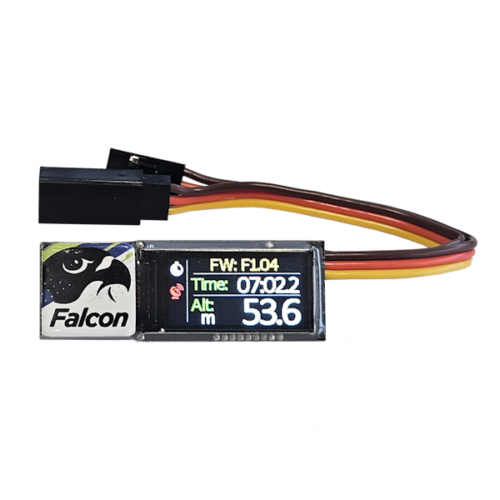

The Falcon module was designed to provide a lightweight compact device with onboard TFT display for use in FAI approved F5J competitions. It can be also used in other applications where measuring and recording flight data over time is required. The Falcon module is able to record data from various inbuilt sensors for later review. Competition parameters are displayed on its onboard display. For communication with Android or iOS device, it uses
a BLE communication. It uses state of art pressure sensor, fast 18Hz GPS receiver, super accurate 3 axe accelometer and super sensitive microphone to detect environmental nose level (ENL). For storage it uses sold state memory.

Key features
- Lightweight at only 18 grams with JR cables.
- Small: 48 mm x 17 mm x 9 mm.
 -Integrated F5J FAI altitude/time switch.
- Integrated color TFT display.
 -Integrated GPS receiver with its own rechargeable battery to keep GPS clock running
- Integrated automatic precise flight time recording function for F5J flying
 -Records various flight data for later review.
- Wide range of input power: 4 – 12 volts DC. Normally taking power from your aircraft       receiver supply.

How it works

The module uses a high-resolution barometric pressure sensor system to detect small changes in air pressure that occur due to changes in altitude. It is sensitive enough to detect altitude changes of less than 10cm. This also makes it sensitive to changes in local weather and air pressure variations. The intended use of this device is for measuring short-term altitude changes in R/C aircraft. Long-term altitude readings will vary considerably due to varying atmospheric conditions. It is best used to measure relative changes in altitude. Module has an onboard color TFT display for displaying different data. For storing data, the module has a solid-state flash memory chip.

Specifications:

-Board Dimensions: 48 mm x 17 mm x 9 mm
-Weight: 18 grams
-Temperature Range: -1 -10°C ~ +60°C
-Input Voltage Range: 4.0 – 12.0 volts DC
-Input Current: 70 mA
-Measured Voltage: 4.0 – 12.0 volts DC
-Basic recorded data: Altitude, vario, servo pulse, battery voltage, GPS position, ENL, …
