BMS-A923, Coreless, HV-Digital, High Speed, Horizontal Mount Mini Servo

Blue BirdSKU: BMSA923

Price:
$ 46.99
Stock:
Sold out

Description

DETAILS
Application
Large Glider series, Aircraft & 1/12th EP Car

Specifications
Torque At 4.8V 6.7 kg-cm / 93 oz-in
Torque At 6.0V 8.3 kg-cm / 115.2 oz-in
Torque At 7.4V 10.2 kg-cm / 141.7 oz-in
Torque At 8.4V 11.6 kg-cm / 161.1 oz-in
Speed At 4.8V 0.084 sec / 60°
Speed At 6.0V 0.068 sec / 60°
Speed At 7.4V 0.055 sec / 60°
Speed At 8.4V 0.048 sec / 60

Power Supply
Operating Voltage Range 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Fe & Li-Poly Compatible )

Mini Servo
Control System Digital Controller / Frequency:333Hz / Neutral:1520us
Dead Band Width 0.001ms ( 1us )

Mechanical Specifications
Ball Bearing Dual
Gear All Metal Gears
Motor Racing Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )

Physical Specifications
Dimension (mm) 35.5 x 15 x 29 mm / 1.4 x 0.59 x 1.14 in
Weight (gram) 34.0 ± 1 grams / 1.19 oz

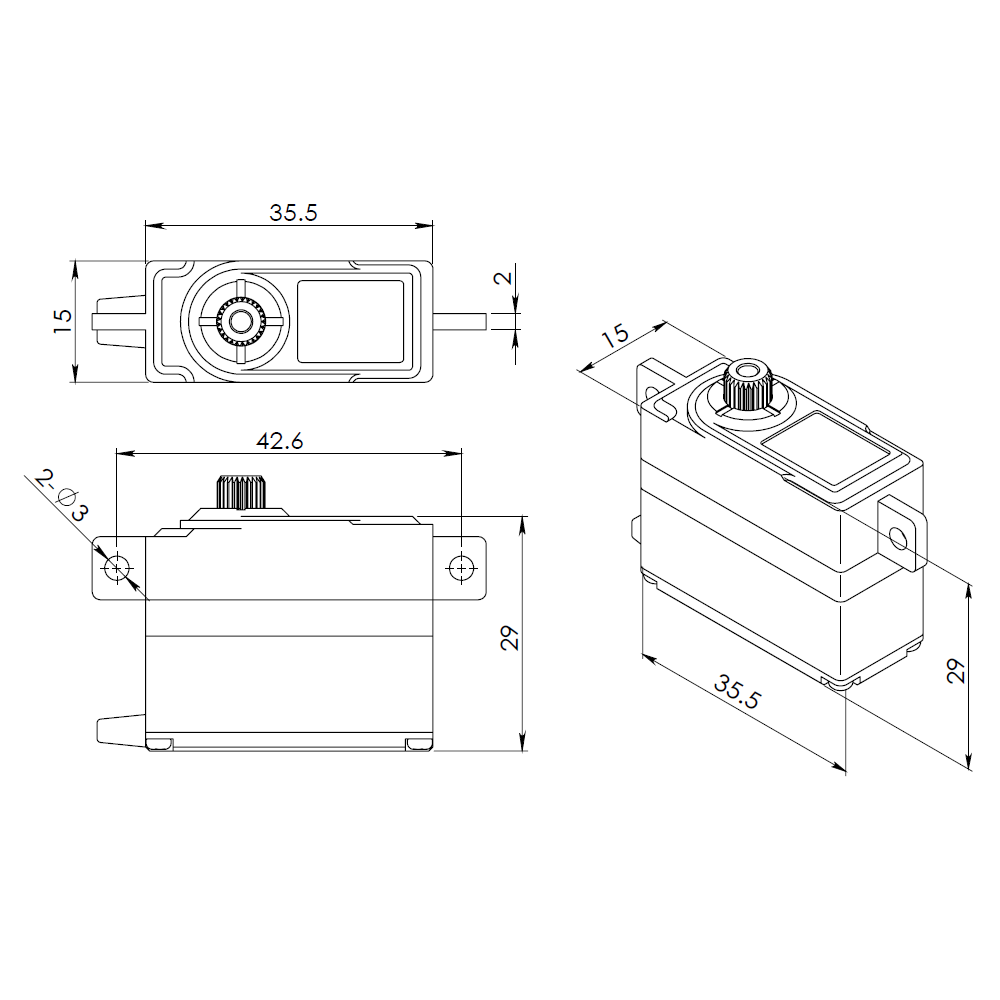

Product Picture / Dimension Sketch
