BMS-35A, HV-Digital, High Torque, Coreless, Titanium Gears

$ 64.99

Brand Blue Bird

BMS-35A, HV-Digital, High Torque, Coreless, Titanium Gears

 DETAILS

 Application

Car. Airplane. Heil (EP / Gas Engine) /1/6, 1/8, 1/10  Buggy / Truggy, Crawler, Monster

Specifications
Torque At 6.0V 29 kg-cm / 403 oz-in
Torque At 7.4V 35.5 kg-cm / 493 oz-in
Speed At 6.0V 0.17 sec / 60°
Speed At 7.4V 0.14 sec / 60°

Power Supply
Operating Voltage Range 4.8V ~ 8.5V ( 2 cell Li-Po / 6 cell Ni-MH Compatible )

Standard Full Aluminum Servo
Control System Digital Controller
Dead Band Width 0.001ms ( 1us )

Specifications
Ball Bearing Dual
Gear Titanium Alloy Gears
Motor Japanese Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )

Physical Specifications
Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 74 ± 1 grams / 2.61 oz

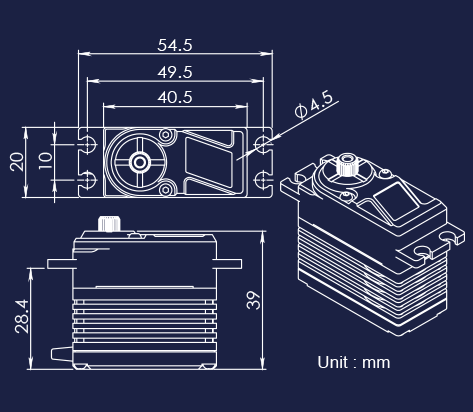

Product Picture / Dimension Sketch
