BMS-23A, HV-Digital, High Speed, Coreless, Titanium Gears

Blue BirdSKU: BMS23A

Price:
$ 59.99
Stock:
Sold out

Description

BMS-23A, HV-Digital, High Speed, Coreless, Titanium Gears



DETAILS
Application
1/8, 1/10th Buggy, Truggy, Crawler & 3D Airplane, Helicopter (EP / Gas Engine)

Specifications
Torque At 6.0V 19.2 kg-cm / 266.7 oz-in
Torque At 7.4V 23.6 kg-cm / 327.8 oz-in
Torque At 8.4V 26.8 kg-cm / 372.3 oz-in
Speed At 6.0V 0.076 sec / 60°
Speed At 7.4V 0.063 sec / 60°
Speed At 8.4V 0.052 sec / 60°

Power Supply
Operating Voltage Range 6.0V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly / 2S Li-Fe )

Standard Full Aluminum Servo
Control System Digital Controller / 12-Bits ( 4096 Steps )
Dead Band Width 0.001ms ( 1us )

Mechanical Specifications
Ball Bearing Dual
Gear Titanium Alloy Gears
Motor Premium Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )

Physical Specifications
Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 72.0 ± 1 grams / 2.54 oz

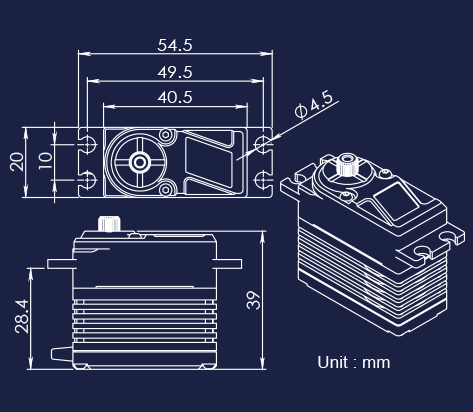

Product Picture / Dimension Sketch
