BMS-210DMH Micro Digital, High Torque, Coreless

Blue BirdSKU: BB210D

Price:
$ 19.99
Stock:
Sold out

Description

BMS-210DMH Micro, Digital, High Torque, Coreless

DETAILS-
Application
EP Aircraft, Heli 250/450 Class CCPM

Specifications
Torque At 4.8V 3.1 kg-cm / 43 oz-in
Torque At 6.0V 3.9 kg-cm / 54.2 oz-in
Speed At 4.8V 0.15 sec / 60°
Speed At 6.0V 0.13 sec / 60°

Power Supply
Operating Voltage Range 4.8V ~ 6V ( 4 ~ 5 Cell Ni-MH )

Micro Servo
Control System Digital Controller
Dead Band Width 0.002ms ( 2us )
Rotating Direction Clockwise / Pulse Traveling 1500 ~ 1900u sec
Operating Travel 90° ( When 1100 ~ 1900 μ sec )

Mechanical Specifications
Ball Bearing Dual
Gear Metal Gears
Motor Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )

Physical Specifications
Dimension (mm) 23 x 12 x 25.4 mm / 0.9 x 0.47 x 1 in
Weight (gram) 16 ± 1 grams / 0.56 oz​

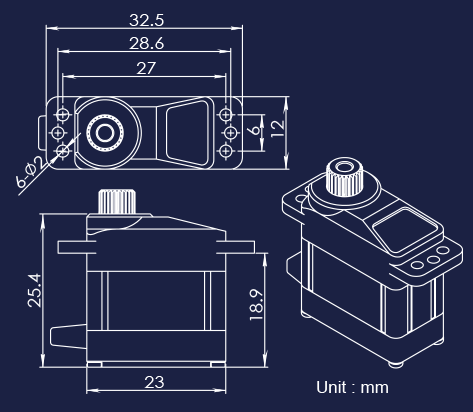

Product Picture / Dimension Sketch
