BMS-207WV Mini, Digital, High Torque, High Speed, Coreless

Blue BirdSKU: BMS207WV

Price:
$ 28.99
Stock:
Sold out

Description

The BMS-207WV Mini is essentially the A207 in a plastic case with some minor internal changes. The 207 offers outstanding performance specs in an affordable package. Great for Sailplanes or smaller sized ( 250-450 ) helicopters. Consider using them in the fuselage of sport sailplanes, F3J models, or even flaps and ailerons.

Wide voltage range allows operation on almost all battery types. High speed and high torque with metal gears!

Application
3D Aircraft, F3K, F3P & DLG, HLG, Heli 250/450Class Cyclic, 1/12th On-Road.



Specifications

Torque At 3.7V 3.3 kg-cm / 45.8 oz-in
Torque At 6.0V 5.4 kg-cm / 75.0 oz-in
Torque At 7.4V 6.6 kg-cm / 91.7 oz-in
Torque At 8.4V 7.5 kg-cm / 104.2 oz-in
Speed At 3.7V 0.09 sec / 60°
Speed At 6.0V 0.07 sec / 60°
Speed At 7.4V 0.06 sec / 60°
Speed At 8.4V 0.05 sec / 60°
Idle Current 2~3 mAh @ 3.7~8.4V Stopped



Power Supply
Operating Voltage Range 3.7V ~ 8.5V ( 3 ~ 6 Cell Ni-MH or 1 ~ 2S Li-Poly / 2S Li-Fe )



Mini Servo
Control System Digital Controller 12-Bits ( 4096 Steps )
Frequency:333Hz / Neutral:1520us
Dead Band Width 0.001ms ( 1us )



Mechanical Specifications
Ball Bearing Dual
Gear All Metal Gears
Motor Premium Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



Physical Specifications
Dimension (mm) 23 x 12 x 27.5 mm / 0.9 x 0.47 x 1.08 in
Weight (gram) 17.5 ± 0.5 grams / 0.62 oz

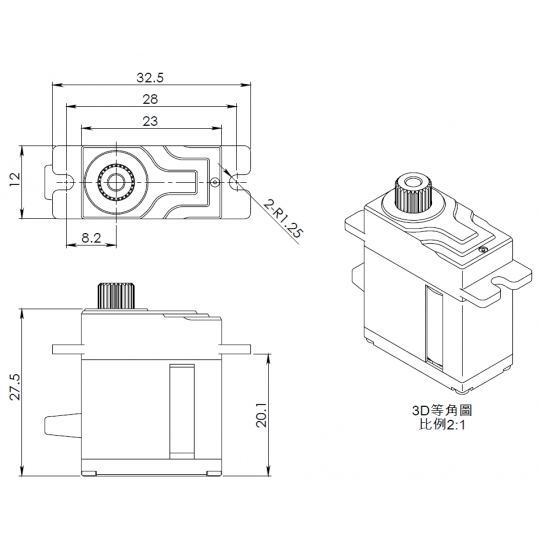

Product Picture / Dimension Sketch
