BMS-127WV MICRO WIDE VOLTAGE-DIGITAL, HIGH SPEED, CORELESS SERVO

Blue BirdSKU: BMS127WV

Price:
$ 21.99
Stock:
In stock

Description

Application
3D EP Aircraft, F3K, F3P & DLG, HLG.

Specifications
Torque At 3.7V 2.1 kg-cm / 29.2 oz-in
Torque At 6.0V 3.4 kg-cm / 47.2 oz-in
Torque At 7.4V 4.2 kg-cm / 58.3 oz-in
Torque At 8.4V 4.8 kg-cm / 66.7 oz-in
Speed At 3.7V 0.11 sec / 60°
Speed At 6.0V 0.07 sec / 60°
Speed At 7.4V 0.06 sec / 60°
Speed At 8.4V 0.05 sec / 60°

Power Supply
Operating Voltage Range 3.7V ~ 8.4V ( 1S or 2S Li-Poly & 2S Li-Fe)
Application / Suitable 3D EP Aircraft, F3K, F3P & DLG, HLG.

Micro Servo
Control System Digital Controller 12-Bits ( 4096 Steps ) / Frequency:250Hz / Neutral:1520us
Dead Band Width 0.002ms ( 2us )
Frame Rate (Signal repeat rate) 3ms ( Maximum )
Rotating Direction Clockwise / When Pulse Traveling 1500 ~ 2100u second
Operating Travel 90° (When 1100 ~ 1900 μ sec)

Mechanical Specifications
Ball Bearing 2 Brass Bushing
Gear All Metal Gears
Motor Coreless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )
Connected Cable Length 150 mm ( 5.9 in )
Connected Housing Universal Connector ( J-Type )

Physical Specifications
Dimension (mm) 23.2 x 10 x 23 mm / 0.91 x 0.39 x 0.90 in
Weight (gram) 11.3 ± 0.5 grams / 0.39 oz​

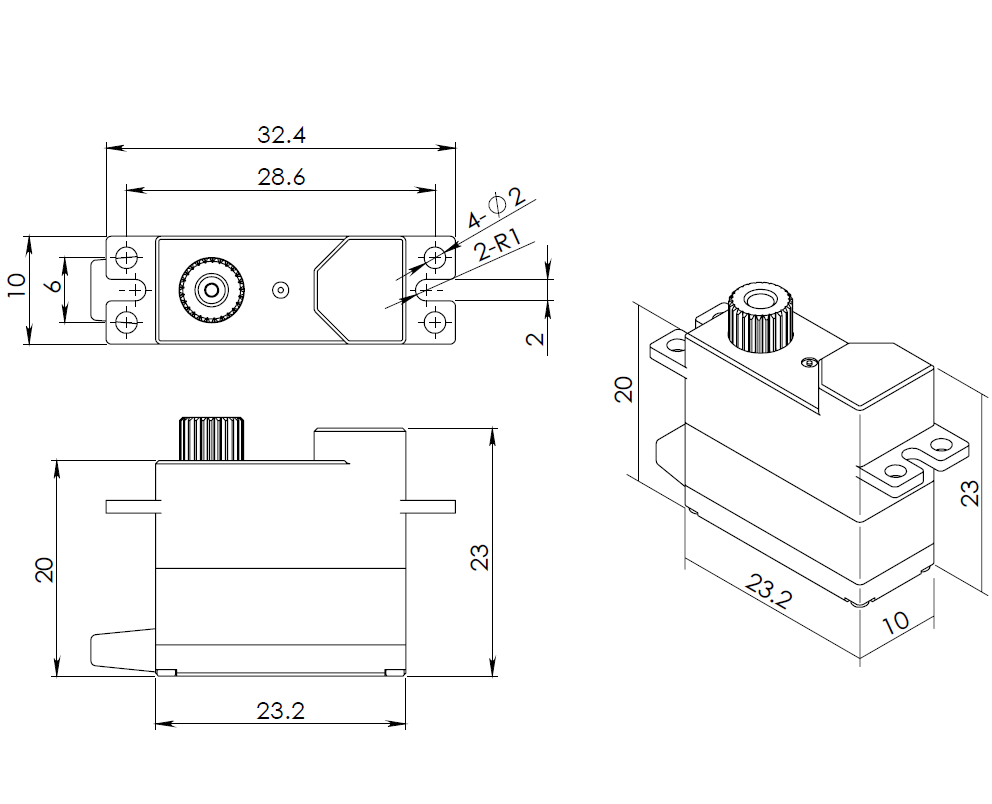

Product Picture / Dimension Sketch
