BG-1343SW (Sail Winch), Digital, Brushless, Programable

Blue BirdSKU: BG1343SW

Price:
$ 87.99
Stock:
Sold out

Description

BG-1343SW

Application
Sail Winch for Larger Boat, Yacht.



Specifications
Torque At 6.0V 36.8 kg-cm / 316.7 oz-in
Torque At 7.4V 43.5 kg-cm / 395.8 oz-in
Torque At 8.4V 48.3 kg-cm / 395.8 oz-in
Speed At 6.0V 0.15 sec / 60°
Speed At 7.4V 0.13 sec / 60°
Speed At 8.4V 0.11 sec / 60°



Power Supply
Operating Voltage Range 4.5V ~ 8.5V ( 4 ~ 6 Cell Ni-MH or 2S Li-Poly & 2S Li-Fe )



Programmable Winch Servo   Programmable Card
Control System Digital Controller
Programmable Yes, programmable circuit system ( Adjustable Range: 3T ~ 6T )
Rotating Direction Clockwise / When Pulse Traveling 1500 ~ 2100u second
Operating Travel Total Maximum around 2160° ( 6 Turns / Rotations )



Mechanical Specifications
Ball Bearing Dual
Gear Durable Steel Alloy Metal Gears
Motor Premium Taiwan Brushless Motor
Horn / Gear Spline 25 Teeth ( Same as F-Type )



Physical Specifications
Dimension (mm) 40.5 x 20 x 39 mm / 1.59 x 0.79 x 1.54 in
Weight (gram) 77 ± 1 grams / 2.71 oz

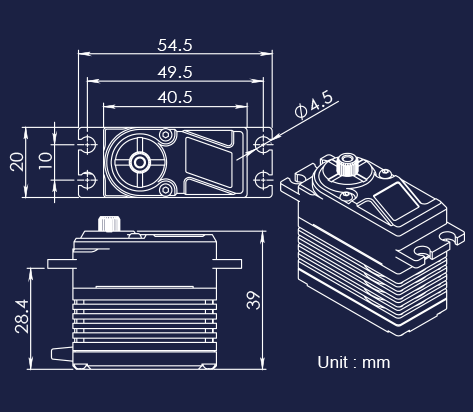

Product Picture / Dimension Sketch
