BMS-22HV Micro HV-Digital, High Speed, Coreless

Blue BirdSKU: BB22HV

Price:
$ 20.99
Stock:
Sold out

Description

BMS-22HV Micro HV-Digital, High Speed, Coreless

DETAILS
Application
Heli 250 Class Rudder, EP Aircraft

Specifications
Torque At 6.0V 2.0 kg-cm / 15.3 oz-in
Torque At 7.4V 2.5 kg-cm / 34.7 oz-in
Speed At 6.0V 0.07 sec / 60°
Speed At 7.4V 0.05 sec / 60°
Idle Current 3 mAh @ 6 ~ 7.4V Stopped

Power Supply
Operating Voltage Range 5.5V ~ 8.5V ( 5 ~ 6 Cell Ni-MH or 2S Li-Poly )

Micro Servo
Control System Digital Controller
Dead Band Width 0.002ms ( 2us )
Rotating Direction Clockwise / Pulse Traveling 1500 ~ 1900u sec
Operating Travel 90° ( When 1100 ~ 1900 μ sec )

Mechanical Specifications
Ball Bearing Dual
Gear All Metal Gears
Motor Coreless Motor
Middle Case Aluminum Alloy Heat Sink
Horn / Gear Spline 25 Teeth ( Same as F-Type )
Connected Cable Length 150 mm ( 5.9 in )
Connected Housing Universal Connector ( J-Type )

Physical Specifications
Dimension (mm) 23 x 12 x 25.4 mm / 0.9 x 0.47 x 1 in
Weight (gram) 15.2 ± 1 grams / 0.53 oz​

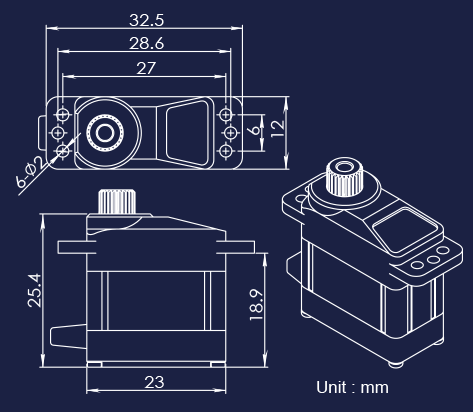

Product Picture / Dimension Sketch
