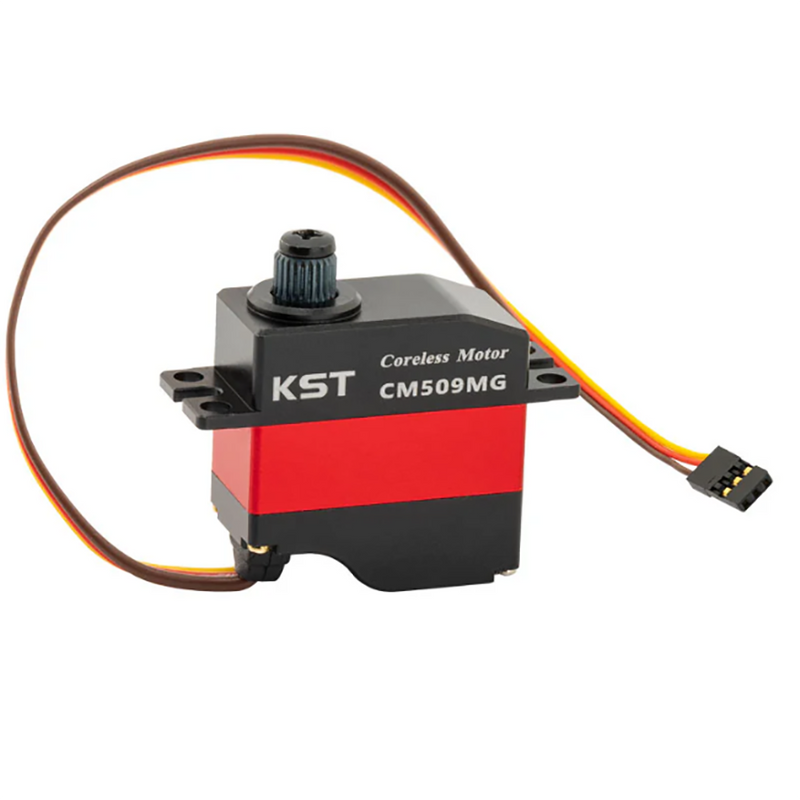

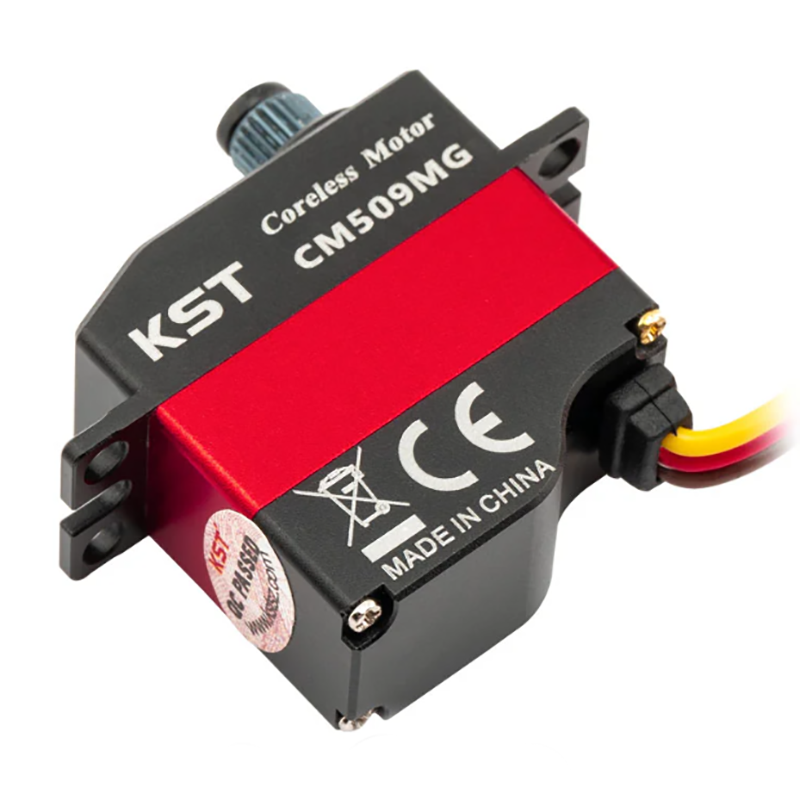

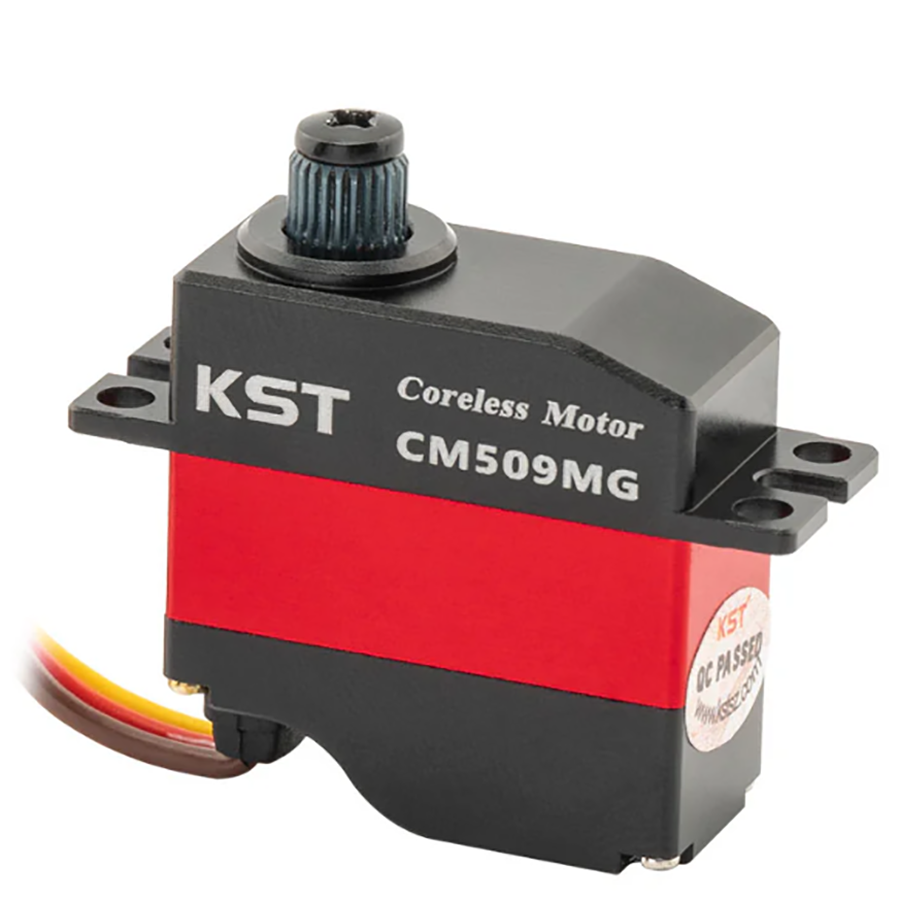

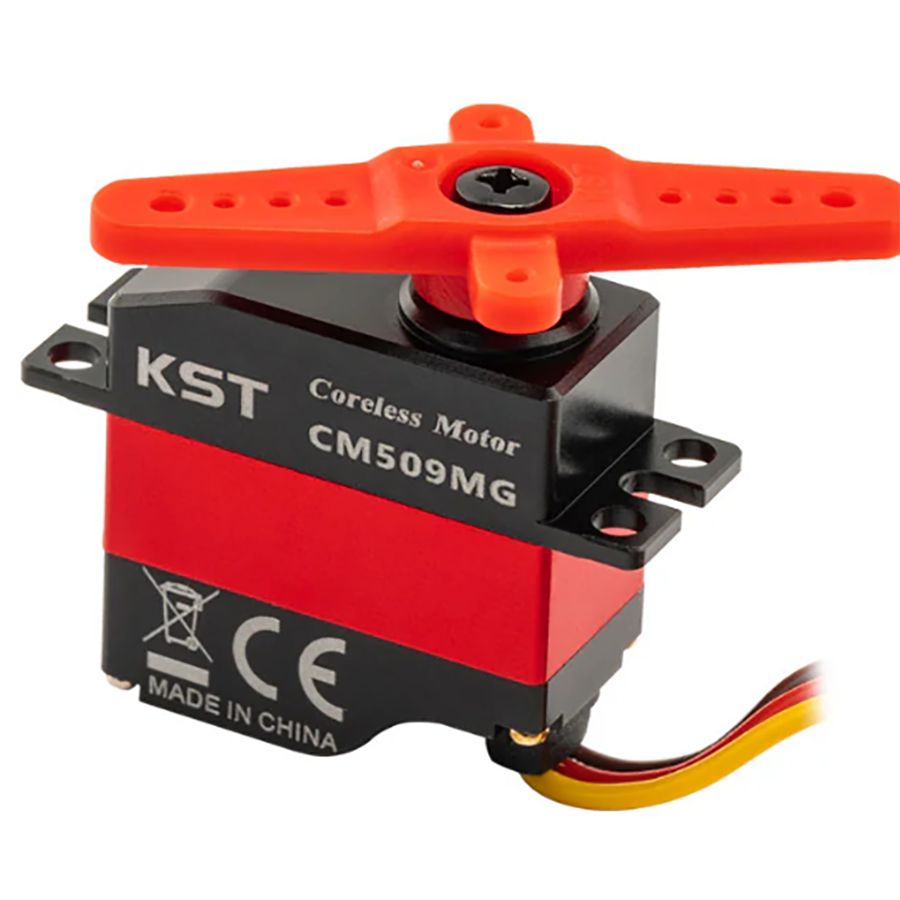

KST CM509MG Micro Coreless Metal Gear Servo

KSTSKU: KSTCM509

Price:
$ 42.99
Stock:
In stock

Description

This product includes import tariffs.

This is our new favorite servo for F3F and F3B fuse installs, or other tight vertical mount installations. Fairly low profile and the wires will not bottom out on your fuselage floor.

The CM509MG micro coreless servo with fast response and high torque is perfect for small-scale RC planes & cars. It features an ultra-fast 0.08sec/60° response speed and an amazing 6.0Kgf.cm of torque. The micro-size design makes it perfect for any small-scale RC model. The CM509MG also supports programming, making it one of the most advanced servos of its kind.

Features

  • High Torque & Amazing Speed
  • Compact and Lightweight Design
  • Programmable
  • Dual Ball Bearings
  • Coreless DC Motor
  • Ideal for Small Scale RC Planes & Cars

Specification

  • Item: CM509MG Micro Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC4.8V-8.4V
  • Torque: 3.6Kgf.cm@4.8V / 4.8Kgf.cm@6.0V / 5.5Kgf.cm@7.4V / 6.0Kgf.cm@8.4V
  • Speed: 0.13sec/60°@4.8V / 0.11sec/60°@6.0V / 0.09sec/60°@7.4V / 0.08sec/60°@8.4V
  • Stalling Current: 0.95A@4.8V / 1.15A@6.0V / 1.35A@7.4V / 1.60A@8.4V
  • Working Frequency: 1520μs/333Hz
  • Default Travel Angle: ±50° =100° Total
  • Temperature Range: -10℃.......+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminium Alloy
  • Motor Type: Coreless Motor
  • Gear Set Material: Metal Gear
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB

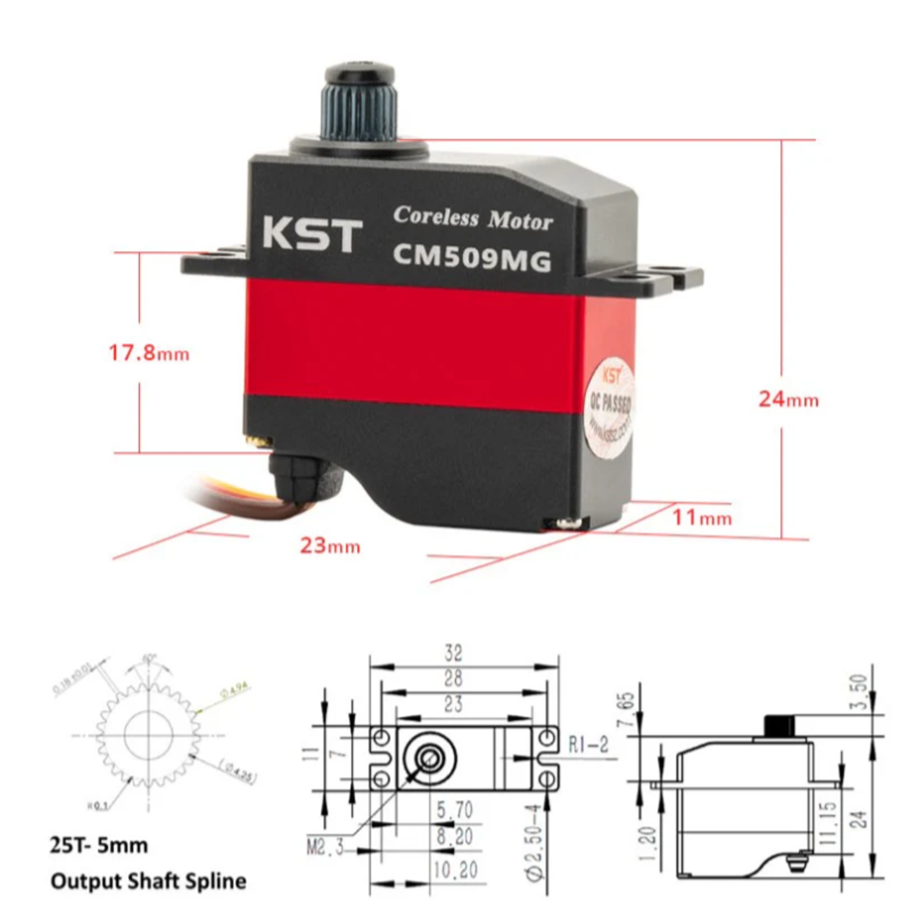

  • Case Dimensions: 23mm*11mm*24mm ±0.2mm
  • Weight: 15g±10%
